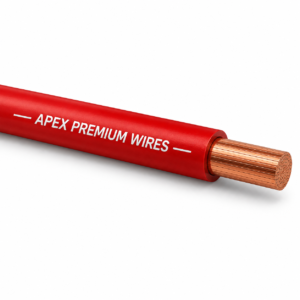

Single Core Copper Cable
| Applicable Standard | IS 694:2010 |
| Conductor | 99.99% Pure Electrolytic Grade Annealed Copper, Multi-Strand Flexible Conductor. |
| Type Insulation | Premium Grade PVC Insulation ensuring superior electrical safety, flexibility and long service life. |
| FRLS Compound | Fire Retardant Low Smoke (FRLS) Compound for enhanced fire safety. |
| ZHFR Compound | Zero Halogen Flame Retardant (ZHFR) Compound for low smoke and toxic gas emission. |
| Operating Temperature | -15°C to +70°C |
| Colour | Red, Black, Blue, Yellow, Green, White & Other Colours Available. |
| Packing | 90m / 100m Coil Packing or As Per Customer Requirement. |
| Marking | APEX Premium Wires, Size, Voltage Grade, Batch No. & Year of Manufacture. |
| Application | Suitable for residential, commercial and industrial electrical wiring, switchboards, distribution panels, lighting circuits and power connections. |
| Features |
• 99.99% Pure Copper Conductor • Excellent Electrical Conductivity • High Flexibility for Easy Installation • Flame Retardant PVC Insulation • Low Power Loss & Energy Efficient • Moisture, Heat & Abrasion Resistant • Long Service Life |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | ISI Certified | RoHS Compliant |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia. of Wires | Nominal Thickness of Insulation (mm) | Approx. Overall Diameter (mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) | Max. Current Carrying Capacity – Casing/Capping (A) | Max. Current Carrying Capacity – Concealed Conduit (A) |
|---|---|---|---|---|---|---|
| 1.5 | 30 / 0.25 | 0.70 | 3.00 | 13.30 | 14 | 13 |
| 2.5 | 50 / 0.25 | 0.80 | 3.60 | 7.98 | 19 | 17 |
| 4.0 | 56 / 0.30 | 0.80 | 4.20 | 4.95 | 26 | 22 |
| 6.0 | 84 / 0.30 | 0.80 | 4.80 | 3.30 | 33 | 28 |
| 10.0 | 80 / 0.40 | 1.00 | 6.20 | 1.91 | 45 | 39 |
| 16.0 | 126 / 0.40 | 1.00 | 7.40 | 1.21 | 60 | 52 |
| FR | FRLS | ZHFR | ||||||
|---|---|---|---|---|---|---|---|---|
| Test | Specification | Specified Value | Test | Specification | Specified Value | Test | Specification | Specified Value |
| Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass |
| Oxygen Index Test | ASTM D2863 | ≥ 29% | Oxygen Index Test | ASTM D2863 | ≥ 30% | Oxygen Index Test | ASTM D2863 | ≥ 30% |
| Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C |
| Smoke Density Test | ASTM D2843 | ≤ 60% | Smoke Density Test | ASTM D2843 | ≤ 50% | Smoke Density Test | ASTM D2843 | ≤ 40% |
| Acid Gas Generation | — | Not Applicable | Acid Gas Generation | IEC 60754-1 | ≤ 20% | Acid Gas Generation | IEC 60754-1 | <0.5% |
| Halogen Acid Gas Test | — | Not Applicable | Halogen Acid Gas Test | IEC 60754-1 | Pass | Halogen Acid Gas Test | IEC 60754-1 | Pass |
| High Voltage Test | IS 694:2010 | Pass | High Voltage Test | IS 694:2010 | Pass | High Voltage Test | IS 694:2010 | Pass |
| Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass |
| Conductor Resistance Test | IEC 60228 | Pass | Conductor Resistance Test | IEC 60228 | Pass | Conductor Resistance Test | IEC 60228 | Pass |
| Spark Test | IS 10810 | Pass | Spark Test | IS 10810 | Pass | Spark Test | IS 10810 | Pass |
The specifications are for reference only and may vary slightly due to manufacturing tolerances. Current carrying capacity depends on installation conditions and ambient temperature. APEX Premium Wires reserves the right to modify specifications without prior notice for continuous product improvement.
