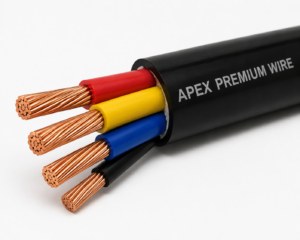

Multicore Copper Cable
| Applicable Standard | IS 694:2010 |
| Conductor | High Conductivity Electrolytic Grade Copper, Multi-Strand Flexible Conductor. |
| Type Insulation | Premium Grade PVC Insulation ensuring excellent electrical performance, flexibility and durability. |
| FRLS Compound | Fire Retardant Low Smoke (FRLS) Compound. |
| ZHFR Compound | Zero Halogen Flame Retardant (ZHFR) Compound. |
| Operating Temperature | -15°C to +70°C |
| Colour | Black Outer Sheath with Core Identification Colours as per Standards. |
| Packing | 90m / 100m Coil Packing or As Per Customer Requirement. |
| Marking | APEX Premium Cables, Size, Voltage Grade, Batch No. & Year of Manufacture. |
| Application | Suitable for control panels, industrial machinery, power distribution, automation systems, electrical installations, motors and pumps. |
| Features |
• High Conductivity Copper Conductor • Multi-Core Flexible Design • Flame Retardant PVC Insulation • Excellent Electrical Performance • High Mechanical Strength • Moisture & Abrasion Resistant • Easy Installation & Long Service Life |
| Voltage Grade | 1100V Grade |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | ISI Certified | RoHS Compliant |
| Nominal Cross Sectional Area (mm²) | No. of Cores | Conductor Construction (Nom.) | Nominal Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Maximum DC Resistance at 20°C (Ω/km) | Current Carrying Capacity (A) |
|---|---|---|---|---|---|---|
| 1.5 | 2 Core | 30/0.25 | 0.70 | 8.5 | 13.30 | 18 |
| 2.5 | 2 Core | 50/0.25 | 0.80 | 10.0 | 7.98 | 24 |
| 4.0 | 2 Core | 56/0.30 | 0.80 | 11.8 | 4.95 | 32 |
| 6.0 | 2 Core | 84/0.30 | 0.80 | 13.5 | 3.30 | 41 |
| 10.0 | 2 Core | 80/0.40 | 1.00 | 16.0 | 1.91 | 57 |
| 16.0 | 2 Core | 126/0.40 | 1.00 | 19.5 | 1.21 | 76 |
| 25.0 | 2 Core | 196/0.40 | 1.20 | 23.0 | 0.780 | 101 |
| 35.0 | 2 Core | 276/0.40 | 1.20 | 26.5 | 0.554 | 125 |
| FR | FRLS | ZHFR | ||||||
|---|---|---|---|---|---|---|---|---|
| Test | Specification | Specified Value | Test | Specification | Specified Value | Test | Specification | Specified Value |
| Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass |
| Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 30% | Critical Oxygen Index | ASTM D2863 | ≥ 30% |
| Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C |
| Smoke Density Rating | ASTM D2843 | ≤ 60% | Smoke Density Rating | ASTM D2843 | ≤ 50% | Smoke Density Rating | ASTM D2843 | ≤ 40% |
| Acid Gas Generation | — | Not Applicable | Acid Gas Generation | IEC 60754-1 | ≤ 20% | Acid Gas Generation | IEC 60754-1 | <0.5% |
| Halogen Acid Gas Test | — | Not Applicable | Halogen Acid Gas Test | IEC 60754-1 | Pass | Halogen Acid Gas Test | IEC 60754-1 | Pass |
| Conductor Resistance Test | IS 8130 | Pass | Conductor Resistance Test | IS 8130 | Pass | Conductor Resistance Test | IS 8130 | Pass |
| High Voltage Test | IS 694 / IS 1554 | Pass | High Voltage Test | IS 694 / IS 1554 | Pass | High Voltage Test | IS 694 / IS 1554 | Pass |
| Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass |
| Spark Test | IS 694 | Pass | Spark Test | IS 694 | Pass | Spark Test | IS 694 | Pass |
Multicore Copper Cables are manufactured with high-conductivity copper conductors and premium PVC insulation for reliable power transmission and long service life. Suitable for industrial, commercial, and residential applications, they offer excellent flexibility, durability, and electrical performance. Available in FR, FRLS, and ZHFR variants for enhanced fire safety.
