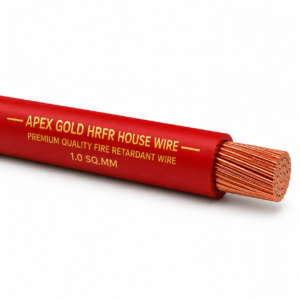

APEX Gold HRFR House Wire
| Applicable Standard | IS 694:2010 |
| Conductor | 99.99% Pure Electrolytic Grade Annealed Copper, Multi-Strand Flexible Conductor. |
| Type Insulation | Premium Grade HRFR (Heat Resistant Flame Retardant) PVC Insulation. |
| FRLS Compound | Available on Request. |
| ZHFR Compound | Not Applicable. |
| Operating Temperature | -15°C to +85°C |
| Colour | Red, Black, Blue, Yellow, Green, White & Other Standard Colours. |
| Packing | 90m / 100m Coil Packing or As Per Customer Requirement. |
| Marking | APEX Gold HRFR House Wire, Size, Voltage Grade, Batch No. & Year of Manufacture. |
| Application | Suitable for residential, commercial and industrial electrical wiring, lighting circuits, switchboards, distribution panels and power connections. |
| Features |
• 99.99% Pure Copper Conductor • HRFR PVC Insulation • High Heat Resistance • Excellent Flame Retardant Properties • Superior Electrical Conductivity • High Flexibility & Easy Installation • Moisture & Abrasion Resistant • Long Service Life |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | ISI Certified | RoHS Compliant |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia. of Wires (Nom.) | Nominal Thickness of Insulation (mm) | Approx. Overall Diameter (±0.2 mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) | Max. Current Carrying Capacity – Casing/Capping (A) | Max. Current Carrying Capacity – Concealed Conduit (A) |
|---|---|---|---|---|---|---|
| 1.0 | 32 / 0.20 | 0.70 | 2.70 | 19.50 | 12 | 10 |
| 1.5 | 30 / 0.25 | 0.70 | 3.00 | 13.30 | 16 | 14 |
| 2.5 | 50 / 0.25 | 0.80 | 3.60 | 7.98 | 22 | 19 |
| 4.0 | 56 / 0.30 | 0.80 | 4.20 | 4.95 | 29 | 25 |
| 6.0 | 84 / 0.30 | 0.80 | 4.90 | 3.30 | 37 | 32 |
| 10.0 | 80 / 0.40 | 1.00 | 6.20 | 1.91 | 52 | 44 |
| 16.0 | 126 / 0.40 | 1.00 | 7.50 | 1.21 | 70 | 58 |
| HRFR | ||
|---|---|---|
| Test | Specification | Specified Value |
| Flame Retardant Test | IS 10810 (Part 53) | Pass |
| Critical Oxygen Index | ASTM D2863 | ≥ 29% |
| Temperature Index | Applicable Test Method | ≥ 250°C |
| Smoke Density Rating | ASTM D2843 | ≤ 60% |
| High Voltage Test | IS 694:2010 | Pass |
| Insulation Resistance Test | IS 10810 | Pass |
| Conductor Resistance Test | IS 694:2010 | Pass |
| Heat Shock Test | IS 10810 | Pass |
| Heat Ageing Test | IS 10810 | Pass |
| Shrinkage Test | IS 10810 | Pass |
| Spark Test | Applicable Test Method | Pass |
| Thermal Performance | Applicable Test Method | Suitable for HRFR Operating Conditions |
The above test values are based on standard testing methods and are for reference only. APEX Gold HRFR House Wires are manufactured under strict quality standards to ensure enhanced safety, reliable performance, and long-lasting durability.
