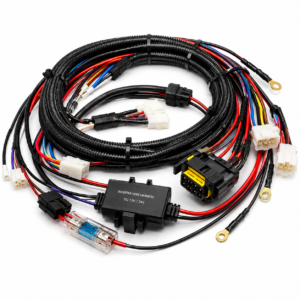

Inverter Wire Hireness
| Product Name | Inverter Wire Harness |
| Conductor | High Conductivity Multi-Strand Copper Conductor. |
| Insulation | Premium Grade PVC Insulated Wires with High Flexibility. |
| Protective Covering | Heavy Duty Corrugated PVC Sleeve & PVC Tape Wrapping. |
| Operating Voltage | 12V / 24V / 48V DC (As Per Inverter Requirement) |
| Operating Temperature | -20°C to +85°C |
| Wire Colour | Multi-Coloured Wires for Easy Circuit Identification. |
| Connector Type | High Quality Automotive & Industrial Grade Connectors & Terminals. |
| Packing | Individual Poly Pack / Box Packing or As Per Customer Requirement. |
| Marking | APEX Premium Cables, Wire Size, Batch No. & Year of Manufacture. |
| Application | Suitable for inverter systems, battery connections, DC input/output circuits, control panels, UPS systems and power backup applications. |
| Features |
• High Conductivity Copper Wires • Flexible & Easy to Install • Heavy Duty Connectors • Heat & Moisture Resistant • Vibration Resistant Construction • Excellent Electrical Performance • Low Power Loss • Long Service Life |
| Quality Standard | Manufactured as per Automotive & Industrial Quality Standards. |
| Product Certification | RoHS Compliant Materials Used. |
| Parameter | Specification |
|---|---|
| Product Type | Inverter Wire Harness |
| Conductor Material | High Conductivity Annealed Copper |
| Wire Size Range | 0.5 mm² to 10.0 mm² (As Per Circuit Requirement) |
| Voltage Rating | 12V / 24V / 48V DC |
| Insulation Material | Premium Grade PVC Insulation |
| Operating Temperature | -20°C to +85°C |
| Connector Type | Heavy Duty Industrial Grade Locking Connectors |
| Protection | Corrugated PVC Sleeve & PVC Tape Wrapping |
| Resistance to | Heat, Moisture, Oil, Vibration & Abrasion |
| Applications | Inverter, UPS, Battery Bank, Solar Power Systems, DC Input/Output Connections & Power Backup Systems |
| Current Capacity | Designed for High Current DC Power Transmission |
| Customization | Available As Per Customer Drawing, Cable Length & Connector Configuration |
| Test | Specification | Specified Value |
|---|---|---|
| Continuity Test | 100% Electrical Continuity | Pass |
| High Voltage Test | Industrial Quality Standard | Pass |
| Insulation Resistance Test | 500V DC | > 100 MΩ |
| Terminal Pull-Out Test | Industrial Standard | Pass |
| Connector Lock Test | Heavy Duty Locking Mechanism | Pass |
| Current Carrying Capacity Test | Rated DC Load | Pass |
| Heat Resistance Test | -20°C to +85°C | Pass |
| Moisture Resistance Test | High Humidity Condition | Pass |
| Abrasion Resistance Test | PVC Corrugated Sleeve Protection | Pass |
| Short Circuit Test | DC Electrical Standard | Pass |
| Visual Inspection | 100% Connector & Wire Inspection | Pass |
| Functional Test | Complete Inverter Wire Harness Assembly | Pass |
Note: The above specifications are for reference only. Actual wire harness configuration, wire sizes, connector types, cable lengths, and overall dimensions may vary depending on the inverter model, power rating, and customer-specific requirements. APEX Premium reserves the right to modify product specifications without prior notice.
