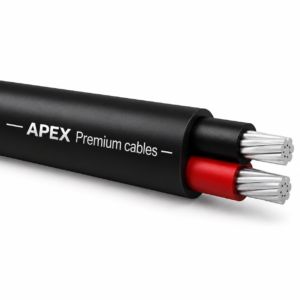

2 Core Aluminium Cable
| Applicable Standard | IS 694:2010 |
| Conductor | High Conductivity EC Grade Aluminium, Multi-Strand Flexible Conductor. |
| Type Insulation | Premium Grade PVC Insulation ensuring excellent electrical performance and durability. |
| FRLS Compound | Fire Retardant Low Smoke (FRLS) Compound. |
| ZHFR Compound | Zero Halogen Flame Retardant (ZHFR) Compound. |
| Operating Temperature | -15°C to +70°C |
| Colour | Red & Black |
| Packing | 90m / 100m Coil Packing or As Per Customer Requirement. |
| Marking | APEX Premium Cables, Size, Voltage Grade, Batch No. & Year of Manufacture. |
| Application | Suitable for residential, commercial, industrial wiring, power distribution, motors, pumps and control panels. |
| Features | • High Conductivity Aluminium Conductor • Lightweight & Easy Installation • Flame Retardant PVC Insulation • Excellent Electrical Performance • Moisture & Abrasion Resistant • Long Service Life |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | ISI Certified | RoHS Compliant |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia of Wires (Nom.) | Nominal Thickness of Insulation (mm) | Approx. Overall Dia (±0.2 mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) | Max. Current Carrying Capacity (Casing) (A) | Max. Current Carrying Capacity (Concealed) (A) |
|---|---|---|---|---|---|---|
| 1.5 | 22/0.30 | 0.70 | 3.10 x 5.80 | 19.50 | 12 | 10 |
| 2.5 | 36/0.30 | 0.80 | 3.80 x 7.20 | 11.80 | 17 | 14 |
| 4.0 | 56/0.30 | 0.80 | 4.40 x 8.60 | 7.41 | 23 | 19 |
| 6.0 | 84/0.30 | 0.80 | 5.30 x 10.30 | 4.95 | 30 | 25 |
| 10.0 | 80/0.40 | 1.00 | 6.80 x 13.20 | 3.08 | 42 | 35 |
| 16.0 | 126/0.40 | 1.00 | 8.20 x 16.00 | 1.91 | 55 | 46 |
| FR | FRLS | ZHFR | ||||||
|---|---|---|---|---|---|---|---|---|
| Test | Specification | Specified Value | Test | Specification | Specified Value | Test | Specification | Specified Value |
| Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass |
| Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 30% |
| Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C |
| Smoke Density Rating | ASTM D2843 | ≤ 60% | Smoke Density Rating | ASTM D2843 | ≤ 60% | Smoke Density Rating | ASTM D2843 | ≤ 40% |
| Acid Gas Generation | — | Not Applicable | Acid Gas Generation | IEC 60754-1 | ≤ 20% | Acid Gas Generation | IEC 60754-1 | <0.5% |
| Halogen Acid Gas Test | — | Not Applicable | Halogen Acid Gas Test | IEC 60754-1 | Pass | Halogen Acid Gas Test | IEC 60754-1 | Pass |
| High Voltage Test | IS 694 | Pass | High Voltage Test | IS 694 | Pass | High Voltage Test | IS 694 | Pass |
| Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass |
The above technical specifications are indicative and subject to manufacturing tolerances. Actual values may vary depending on cable size and applicable standards.
