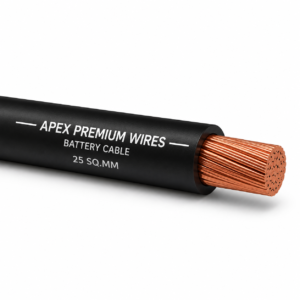

Battery Cable
| Applicable Standard | IS 694:2010 / IS 8130 |
| Conductor | 99.99% Pure Electrolytic Grade Annealed Copper, Multi-Strand Flexible Conductor. |
| Type Insulation | Heavy Duty Flexible PVC Insulation with excellent resistance to heat, oil, moisture and abrasion. |
| FRLS Compound | Available on Request. |
| ZHFR Compound | Available on Request. |
| Operating Temperature | -15°C to +85°C |
| Colour | Red & Black |
| Packing | 90m / 100m Coil Packing or As Per Customer Requirement. |
| Marking | APEX Premium Battery Cable, Size, Voltage Grade, Batch No. & Year of Manufacture. |
| Application | Suitable for automotive batteries, inverters, UPS systems, solar battery banks, generators and DC power connections. |
| Features |
• 99.99% Pure Copper Conductor • High Flexibility for Easy Installation • Heavy Duty PVC Insulation • Excellent Electrical Conductivity • Heat, Oil & Moisture Resistant • High Mechanical Strength • Low Voltage Drop • Long Service Life |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | RoHS Compliant |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia. of Wires | Nominal Thickness of Insulation (mm) | Approx. Overall Dia. (±0.2 mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) | Continuous Current Rating (A) | Application |
|---|---|---|---|---|---|---|
| 6 | 84 / 0.30 | 0.80 | 5.60 | 3.30 | 55 | Small Inverter / Battery |
| 10 | 80 / 0.40 | 1.00 | 6.80 | 1.91 | 75 | UPS & Solar Battery |
| 16 | 126 / 0.40 | 1.00 | 8.30 | 1.21 | 105 | Automotive / Inverter |
| 25 | 196 / 0.40 | 1.20 | 10.20 | 0.780 | 135 | Heavy Duty Battery |
| 35 | 276 / 0.40 | 1.20 | 11.80 | 0.554 | 170 | Commercial Vehicles |
| 50 | 396 / 0.40 | 1.40 | 13.80 | 0.386 | 220 | Industrial Battery Banks |
| Battery Cable | ||
|---|---|---|
| Test | Specification | Specified Value |
| Conductor Resistance Test | IS 8130 | Pass |
| High Voltage Test | IS 694 | Pass |
| Insulation Resistance Test | IS 10810 | Pass |
| Spark Test | IS 10810 | Pass |
| Heat Resistance Test | IS 10810 | Pass |
| Cold Bend Test | IS 10810 | Pass |
| Abrasion Resistance Test | IS 10810 | Pass |
| Oil Resistance Test | IS 10810 | Pass |
| Moisture Resistance Test | Internal Test Method | Pass |
| Flexibility Test | Internal Test Method | Excellent |
The above test values are for reference only. APEX Premium Battery Cables are manufactured under strict quality standards to ensure high conductivity, superior flexibility, and reliable performance in automotive, inverter, UPS, and battery applications.
