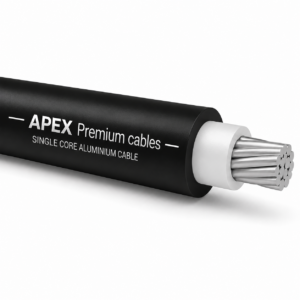

Single Core Aluminium Cable
| Applicable Standard | Residential, Commercial & Industrial Electrical Wiring |
| Conductor | 99.99% Electrolytic Annealed Bare Copper (CCR/ETP Grade) |
| Type Insulation | Single Core PVC Insulated Flexible House Wire and Flame Retardant (FR) PVC Insulation |
| FRLS Compound | Flame Retardant Low Smoke (FRLS) Compound Available |
| ZHFR Compound | Zero Halogen Flame Retardant (ZHFR) Compound Available |
| Operating Temperature | Up to 70°C (Continuous Operating Temperature) |
| Colour | Red, Black, Blue, Yellow, Green, White & Other Standard Colours |
| Packing | 90 m / 180 m / 270 m / 540 m Coil (As per Requirement) |
| Marking | Manufacturer Name & Size |
| Application | Internal Wiring for Homes, Offices, Commercial Buildings & Industrial Installations |
| Features | High Conductivity, Flexible, Flame Retardant, Easy Installation, Long Service Life, Low Power Loss, Heat Resistant |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | ISI Certified (IS 694), RoHS Compliant |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia of Wires (Nom.) | Nominal Thickness of Insulation (mm) | Approx. Overall Dia (±0.2 mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) | Max. Current Carrying Capacity (Casing) (A) | Max. Current Carrying Capacity (Concealed) (A) |
|---|---|---|---|---|---|---|
| 0.75 | 24/0.20 | 0.60 | 2.30 | 24.50 | 7 | 6 |
| 1.0 | 32/0.20 | 0.60 | 2.60 | 18.10 | 11 | 10 |
| 1.5 | 30/0.25 | 0.70 | 3.00 | 12.10 | 16 | 14 |
| 2.5 | 50/0.25 | 0.80 | 3.60 | 7.41 | 22 | 18 |
| 4.0 | 56/0.30 | 0.80 | 4.30 | 4.61 | 30 | 25 |
| 6.0 | 84/0.30 | 0.80 | 5.10 | 3.08 | 38 | 32 |
| 10.0 | 80/0.40 | 1.00 | 6.60 | 1.83 | 52 | 44 |
| 16.0 | 126/0.40 | 1.00 | 8.00 | 1.15 | 69 | 57 |
| FR | FRLS | ZHFR | ||||||
|---|---|---|---|---|---|---|---|---|
| Test | Standard | Specified Value | Test | Standard | Specified Value | Test | Standard | Specified Value |
| Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass |
| Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 30% |
| Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C |
| Smoke Density Test | ASTM D2843 | ≤ 60% | Smoke Density Test | ASTM D2843 | ≤ 60% | Smoke Density Test | ASTM D2843 | ≤ 40% |
| Acid Gas Generation | — | Not Applicable | Acid Gas Generation | IEC 60754-1 | ≤ 20% | Acid Gas Generation | IEC 60754-1 | < 0.5% |
| Halogen Acid Gas Test | — | Not Applicable | Halogen Acid Gas Test | IEC 60754-1 | Pass | Halogen Acid Gas Test | IEC 60754-1 | Pass |
| Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass |
| High Voltage Test | IS 694 | Pass | High Voltage Test | IS 694 | Pass | High Voltage Test | IS 694 | Pass |
Technical specifications are indicative and may change without prior notice as part of our continuous product improvement program.
