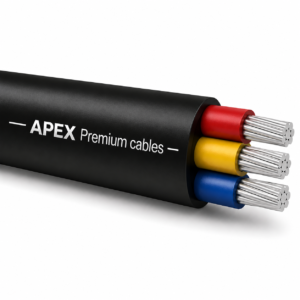

Aluminium Cable
| Applicable Standard | IS 694:2010 (or as applicable) |
| Conductor | High Conductivity EC Grade Aluminium Conductor. |
| Type Insulation | Premium Grade PVC Insulation. |
| FRLS Compound | Fire Retardant Low Smoke (FRLS) Compound Available. |
| ZHFR Compound | Zero Halogen Flame Retardant (ZHFR) Compound Available. |
| Operating Temperature | -15°C to +70°C |
| Colour | Red, Black, Blue, Yellow, Green & White |
| Packing | 90 m / 100 m Coil Packing or As Per Customer Requirement. |
| Marking | APEX Premium Cables, Conductor Size, Voltage Grade, Batch No. & Year of Manufacture. |
| Application | Suitable for residential, commercial and industrial electrical wiring, power distribution and lighting circuits. |
| Features |
• High Conductivity EC Grade Aluminium • Lightweight Construction • Excellent Electrical Performance • Flame Retardant PVC Insulation • Easy Installation • Long Service Life |
| ISO Certification | ISO 9001:2015 Certified Manufacturing |
| Product Certification | ISI Certified (If Applicable) | RoHS Compliant (If Applicable) |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia of Wires (Nom.) | Nominal Thickness of Insulation (mm) | Approx. Overall Dia (±0.2 mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) | Max. Current Carrying Capacity (Casing) (A) | Max. Current Carrying Capacity (Concealed) (A) |
|---|---|---|---|---|---|---|
| 1.5 | 7/0.52 | 0.70 | 2.90 | 18.80 | 11 | 9 |
| 2.5 | 7/0.67 | 0.80 | 3.50 | 11.30 | 16 | 13 |
| 4.0 | 7/0.85 | 0.80 | 4.10 | 7.10 | 22 | 18 |
| 6.0 | 7/1.04 | 0.80 | 4.90 | 4.70 | 29 | 24 |
| 10.0 | 7/1.35 | 1.00 | 6.10 | 2.82 | 40 | 33 |
| 16.0 | 7/1.70 | 1.00 | 7.60 | 1.76 | 54 | 45 |
| 25.0 | 7/2.15 | 1.20 | 9.20 | 1.09 | 70 | 58 |
| 35.0 | 7/2.52 | 1.20 | 10.60 | 0.78 | 88 | 73 |
| FR | FRLS | ZHFR | ||||||
|---|---|---|---|---|---|---|---|---|
| Test | Standard | Specified Value | Test | Standard | Specified Value | Test | Standard | Specified Value |
| Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass | Flame Retardant Test | IS 10810 (Part 53) | Pass |
| Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 29% | Critical Oxygen Index | ASTM D2863 | ≥ 30% |
| Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C | Temperature Index | ASTM D2863 | ≥ 250°C |
| Smoke Density Test | ASTM D2843 | ≤ 60% | Smoke Density Test | ASTM D2843 | ≤ 60% | Smoke Density Test | ASTM D2843 | ≤ 40% |
| Acid Gas Generation | — | Not Applicable | Acid Gas Generation | IEC 60754-1 | ≤ 20% | Acid Gas Generation | IEC 60754-1 | <0.5% |
| Halogen Acid Gas Test | — | Not Applicable | Halogen Acid Gas Test | IEC 60754-1 | Pass | Halogen Acid Gas Test | IEC 60754-1 | Pass |
| High Voltage Test | IS 694:2010 | Pass | High Voltage Test | IS 694:2010 | Pass | High Voltage Test | IS 694:2010 | Pass |
| Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass | Insulation Resistance Test | IS 10810 | Pass |
| Conductor Resistance Test | IS 8130 | Pass | Conductor Resistance Test | IS 8130 | Pass | Conductor Resistance Test | IS 8130 | Pass |
| Visual & Dimensional Inspection | IS 694 | Pass | Visual & Dimensional Inspection | IS 694 | Pass | Visual & Dimensional Inspection | IS 694 | Pass |
The above technical specifications are indicative and subject to manufacturing tolerances. Actual values may vary depending on conductor size and applicable standards.
