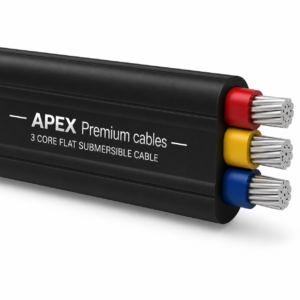

3 Core/Submersible Flat Cable
| Applicable Standard | Designed for submersible pumps used in borewells, agriculture, domestic water supply, industrial pumping systems, and continuous underwater power transmission. |
| Conductor | 99.99% Pure Electrolytic Grade Annealed Copper |
| Type Insulation | Premium Grade PVC Insulation |
| Number of Cores | 3 Core |
| Conductor Type | Flexible Multi-Strand Copper Conductor |
| Core Identification | Red, Yellow & Blue |
| Outer Sheath | Heavy Duty PVC Sheath with High Water & Abrasion Resistance |
| Voltage Grade | Up to 1100 Volts |
| Temperature Rating | 70°C Maximum Conductor Temperature |
| Standard | ISI Marked, Manufactured as per IS 694. |
| Features | • High Conductivity Copper • Flame Retardant • Low Smoke Emission • Long Service Life |
| ISO Certification | ISI, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 . |
| Product Certification | NSIC Certified Manufacturing Facility. |
| Nominal Cross Sectional Area (mm²) | Number / Nominal Dia of Wires (Nom.) | Nominal Thickness of Insulation (mm) | Approx. Overall Dia (±0.2 mm) | Maximum DC Resistance of Conductor at 20°C | Max. Current Carrying Capacity (Casing) | Max. Current Carrying Capacity (Concealed) |
|---|---|---|---|---|---|---|
| 0.5 | 16/0.2 ** | 0.6 | 2.10 | 39.00 | 4 | 4 |
| 0.75 | 24/0.2 ** | 0.6 | 2.30 | 26.00 | 7 | 6 |
| 1 | 14/0.3 * | 0.6 | 2.70 | 18.10 | 12 | 11 |
| 1.5 | 22/0.3 * | 0.7 | 3.00 | 12.10 | 16 | 13 |
| 2.5 | 36/0.3 * | 0.8 | 3.50 | 7.41 | 22 | 18 |
| 4 | 56/0.3 ** | 0.8 | 4.10 | 4.95 | 29 | 24 |
| 6 | 84/0.3 ** | 0.8 | 5.10 | 3.30 | 37 | 31 |
| FR | FRLS | ZHFR | ||||||
|---|---|---|---|---|---|---|---|---|
| Test | Specification | Specified Value | Test | Specification | Specified Value | Test | Specification | Specified Value |
| Critical Oxygen Index | ASTM-D 2863 | 29% Minimum | Critical Oxygen Index | ASTM-D 2863 | 29% Minimum | Critical Oxygen Index | ASTM-D 2863 | 29% Minimum |
| Temperature Index | ASTM-D 2863 | 250°C Minimum | Temperature Index | ASTM-D 2863 | 250°C Minimum | Temperature Index | ASTM-D 2863 | 250°C Minimum |
| — | — | — | Acid Gas Generation | IEC 60754-1 | 20% Maximum | Acid Gas Generation | IEC 60754-1 | < 0.5% |
| Smoke Density Rating | ASTM-D 2843 | 60% Maximum | Smoke Density Rating | ASTM-D 2843 | 60% Maximum | Smoke Density Rating | ASTM-D 2843 | 60% Maximum |
Specifications are subject to change without prior notice as part of our continuous product improvement policy. For customized sizes and technical assistance, please contact OSYM Industries.
